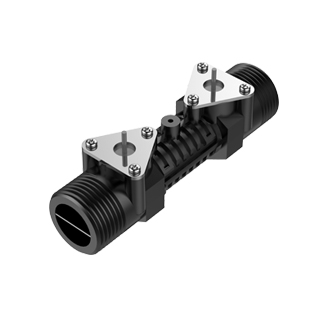

HS0016|AUDIOWELL Flow Sensor with Pipe

Flow Transducer with PipeModel：HS0016

The Ultrasonic Flow Sensor with Plastic Pipe measures the flow rate of the water flowing through it by transmitting and receiving ultrasonic pulses. It is comprised of a pair of ultrasonic flow sensors and a polymer pipe.

Request a sample

Features

- Low pressure loss

- Anti-deformation material

- High-temperature resistance

- High accuracy and consistency

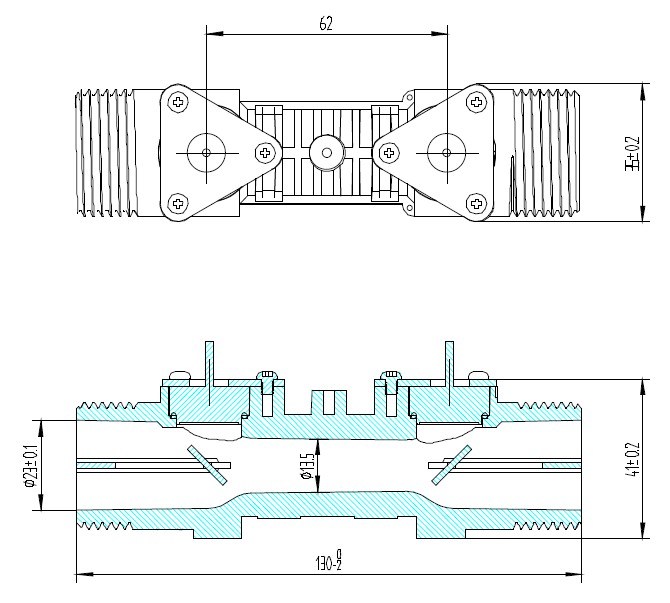

Dimensions

Specifications

Item	Specifications
Resonant frequency	1090±25 KHz
Resonant impedance	25~75 Ω
Free capacitance	1130±20%pF
Receiving Signal	≥350mV
Max. Allowable Working Pressure	2.5Mpa
Operating Temperature	+0.1℃～+90℃
Installation Length	130mm
Connecting Thread	G1
Diameter	DN20

Applications

- Ultrasonic water meter

- Water flow measurement
