UM0122-001

Smart Atomizer

The Ultrasonic Digital Atomizer is an intelligent ultrasonic atomization device which integrates the atomizing transducer and circuit board. Compared to the traditional atomizer which has separate circuit and transducer, it features compact size, low power consumption and low heat. Unlike the traditional one with analog signal control, it is controlled by digital signal, thereby facilitating the development of extensional functions such as APP control, bluetooth connection, controlled lighting, etc to intelligentize the whole device.
Request a sample
Features

- Integrated transducer+circuit design and compact size

- High conversion efficiency, low power consumption and heat

- Built-in water level detection for anti-dry protection

- Digital signal control, easy extension development

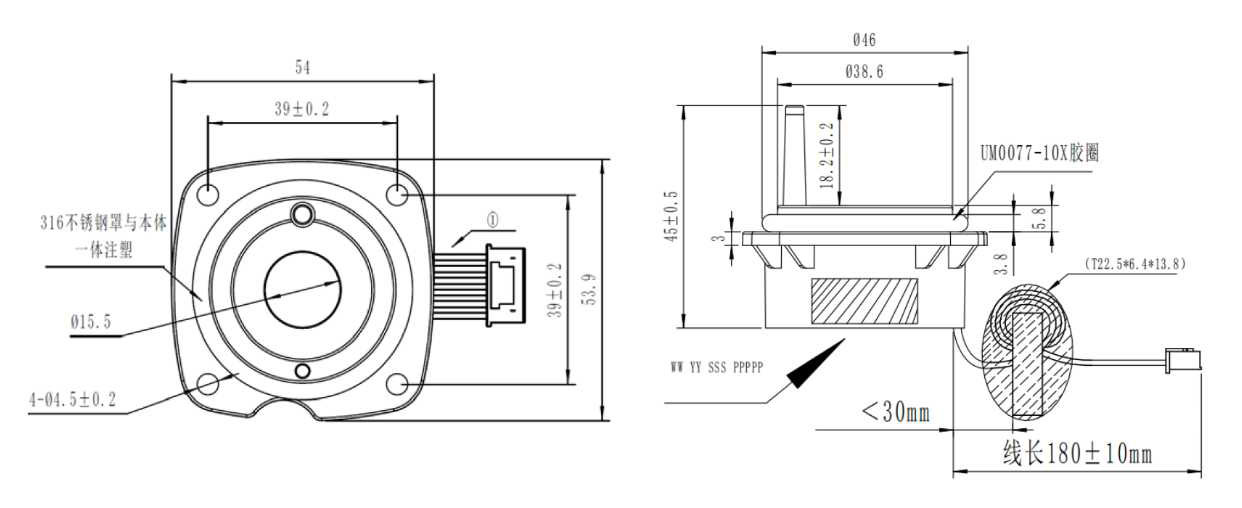

Dimensions
Specifications
ItemSpecifications
Power SupplyDC :24±1.2V
Operating Current0.68±0.07A
Transducer Frequency1.7±0.05MHz
Mist Volume≥280mL/h
Operating Tem.+3℃~+50℃


Applications

- Humidifier

- Air conditioning humidification

- Industrial humidification

- Electronic fireplace
