TC0120-006

Enclose Ultrasonic Sensor

The ultrasonic transducer utilizes piezoelectric effect to convert electricity to mechanical vibration and form ultrasonic waves. Therefore no coil is contained and electromagnetic interference can be greatly reduced. The ultrasonic wave has excellent directivity and strong penetrability, and is interfered by neither the dust and electromagnetic fields in the air, nor the color and temperature at object surfaces.
Request a sample
Features

- Low power consumption
- High reliability
- Excellent waterproof performance and weatherability


Applications

- Reversing detection

- Assisted parking system

- Blind spot information system

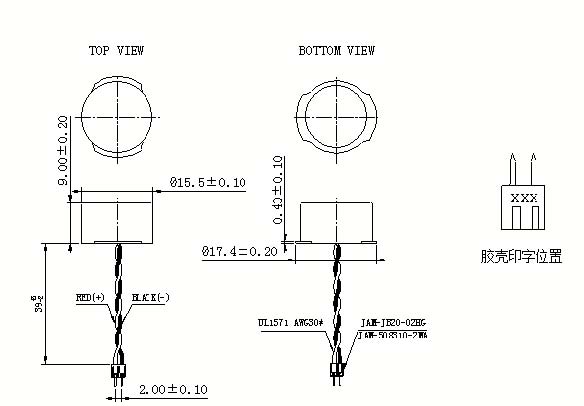

Dimensions
Specifications
ItemSpecifications
Resonant frequency48 ± 1.0 kHz
Sensitivity550~850μS
Decay time1.2~1.8 mS at 25 ± 3℃
≤2.2 mS at -40 to 85℃
Directivity(deg) X-axis80°
Directivity(deg) Y-axis80°
Capacitance1400± 20% pF
Max.Input Volt160Vp-p
Operating temperature-40℃~+85℃
Mean time to failure50000H
