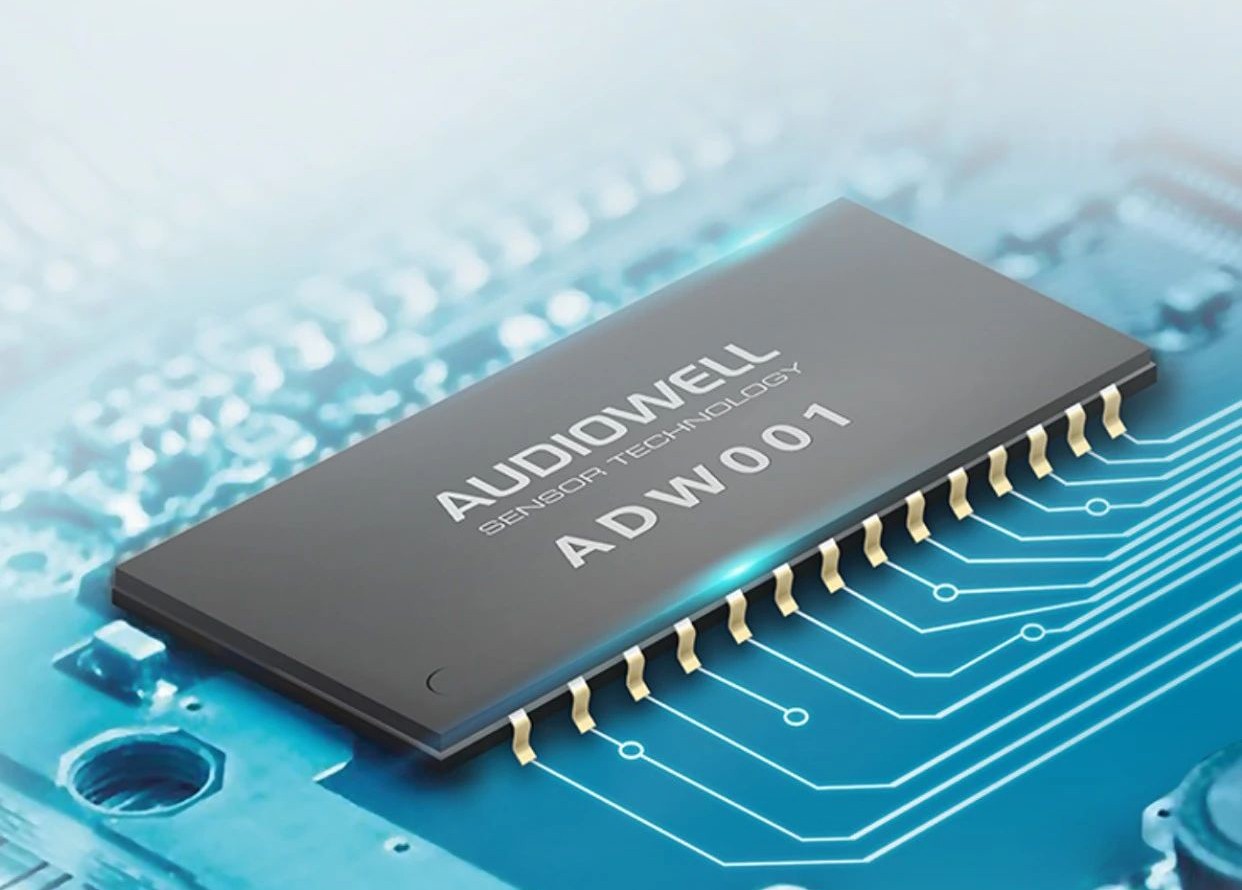

ADWO01: A dedicated design IC for portable aromatherapy atomizing to meet various market scenarios of atomizing and aromatherapy applications.April 27th, AWE China Home Appliances and Consumer Electronics Expo made its grand debut!
Excellent Compatibility
1T 8051 CPU, instruction set full compatibility MCS-51 features integrated PFG sweep output, touch, ADC and power management module can realize high-precision sweep output, charging management, boost management, etc.,.
Atomizing IC is equipped with a dedicated clock RC, PFG output can be set (1.7/2.4/3.0/3.3MHz and other frequencies can be set), duty cycle adjustable sweep range ± 300KHz, sweep accuracy of 1%, to achieve high-precision sweep output effect.
4 road independent controllable touch, can set up a variety of different touch functions 2-way 16-bit power supply charging and discharging dedicated PWM output, for the whole machine compatible with different voltage input to provide the basis.
Huge storage space
16KBYTE MTP space, 1KBYTE SRAM space 432 BYTE EEPROM space, to meet a variety of atomization and aromatherapy machines require program reading and writing functions.
program read/write functions required by various atomization and aromatherapy machines.
Even if the secondary development needs to add a number of functional programs at the same time, such a huge storage space is also more than enough.
Professional clock system
Both 16MHZ RC high-speed clock configuration, as well as low-speed clock configuration, so that the entire machine at the same time with fast diffusion and slow enjoy the fragrance of the multi-position setting conditions.
In the low-speed clock state, the current value of the chip is less than 50uA, the machine then turns to low-power mode operation.
Powerful Programming Function
Built-in IAP programming function can be set up in the factory, which provides software programs for high-precision frequency sweep output, charging management, boosting management and so on.
PFG has built-in push-pull, which can directly drive MOS with configurable driving capability and switching speed.
Meanwhile, external PWM communication control can be realized more accurately and conveniently.
More Advantageous Performance
Operating voltage 2.8V-5.5V, adapting to different charging modes such as battery, USB, etc. No need to install other chips separately to deal with voltage rise and fall when using this chip.
The operating temperature of the product is -40~85℃℃, high and low temperature resistance.
Package process is SOP28/TSSOP28, highly sealed
Empowering Aromatherapy Atomizing Technology Please look forward to AUDIOWELL's first mobile Atomizing IC, ADWO01!
It will bring you a more comfortable and refreshing intelligent life!
