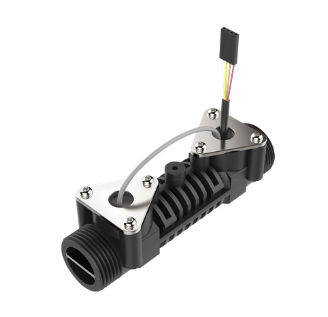

FS0001|AUDIOWELL Ultrasonic Flow Sensor Module

Flow Sensor ModuleModel：FS0001

The Ultrasonic Flow Sensor Module measures the flow rate of liquid by calculating the transit time difference of upstream and downstream ultrasonic pulses. It contains no moving part in the pipe section, and therefore has lower pressure loss and higher accuracy than traditional flow meters.

Request a sample

Features

- Measuring pipe made of molded engineering plastic to ensure high ruggedness and reliability

- Up to 2% accuracy and immunity to environment impact

- Turndown ratio up to 160

- Approved for drinking water

- Digital output with M-BUS serial communication

Dimensions

FS0001 ultrasonic flow sensor -AUDIOWELL.jpg

Specifications

Item	Specifications
Diameter	DN 15
Flow Range	1.5-3000 L/h
Accuracy	25~35°C: ≤±2% Others: ≤±3%
Max. Operating Pressure	1.6 MPa
Protocol	M-BUS
Power Supply	3.1-3.7 V
Operating Temperature	0.1°C~+50°C
Operating Life	≥6years

Applications

- Water management for house

- Smart water management system

- Smart irrigation system

- Water metering for industrial equipment
