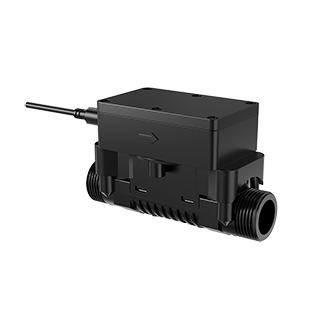

FS0016|AUDIOWELL Ultrasonic Flow Sensor Module

Flow Sensor ModuleModel：FS0016

The Ultrasonic Flow Sensor Module measures the flow rate of liquid by calculating the transit time difference of upstream and downstream ultrasonic pulses. It contains no moving part in the pipe section, and therefore has lower pressure loss and higher accuracy than traditional flow meters.

Request a sample

Features

- Measuring pipe made of molded engineering plastic to ensure high ruggedness and reliability

- Approved for drinking water

- Digital output with UART serial communication

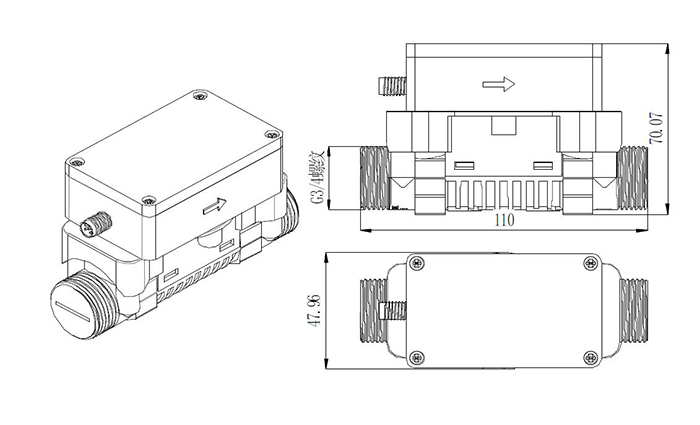

Dimensions

Specifications

Item	Specifications
Diameter	DN 15
Flow Range	2.5-2500L/h
Max. Operating Pressure	1.6 MPa
Protocol	UART
Power Supply	5 V
Operating Temperature	0.1°C~+50°C

Applications

- Water metering for industrial equipment

- Smart water management system

- Smart irrigation system
