TC0120-001

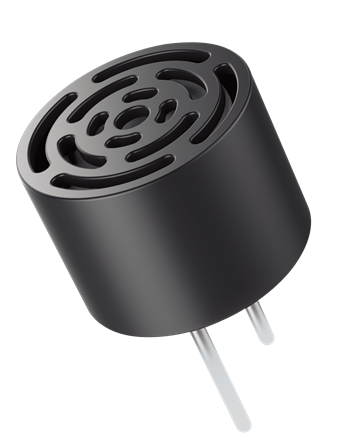

Open Type Ultrasonic SensorModel：TO0101-004 & TO0104-004

Open-type sensors are classified into 3 types: transmitter, reciever. It features wide measuring range and strong anti-interference ability. Open type sensors are mainly used in car alarm devices, distance measuring device and remote control system.

Request a sample

Features

- Can measure obstacle with different shape and material

- Cannot be influenced by ambient light

- Has a large measuring range

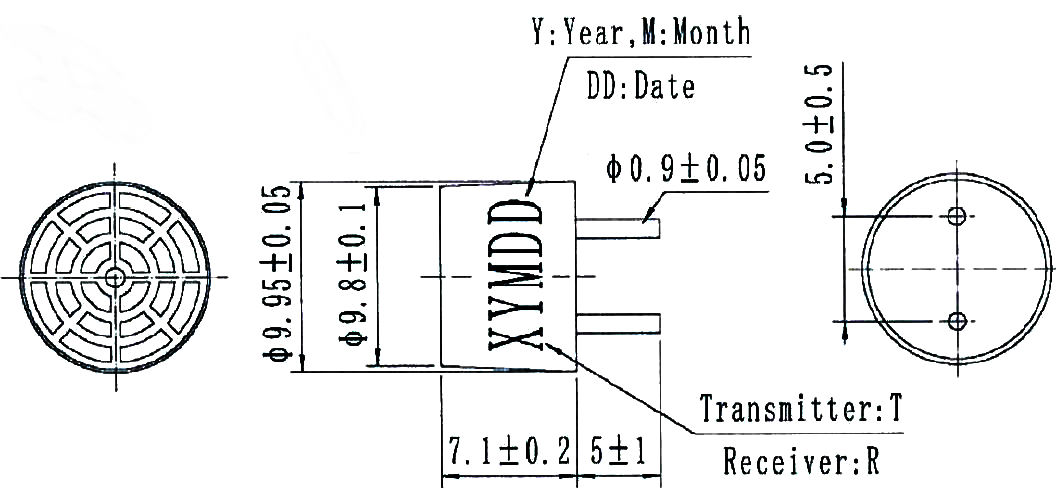

Dimensions

Specifications

Item	TO0101-004	TO0104-004
Center Frequency	40±1.0KHz
Sound Pressure Level	117~122dB	------
Sensitivity	------	-60~-55dB
Beam Angle	90°
Capacitance	1900±20%pF
Max. Driving Voltage	40Vp-p
Working Temperature	-40 °Cto +85 °C
