HN0635-000

Piezo Disc

Piezo disc is used as the core element of ultrasonic flow sensors. Ultrasonic flow measurement uses the transit time principle, whereby opposite sending and receiving ultrasonic flow sensors are used to transmit signals through the flow. The signal travels faster when moving with the flow stream rather than against the flow stream. The difference between the two transit times is used to calculate the flow rate.
Request a sample

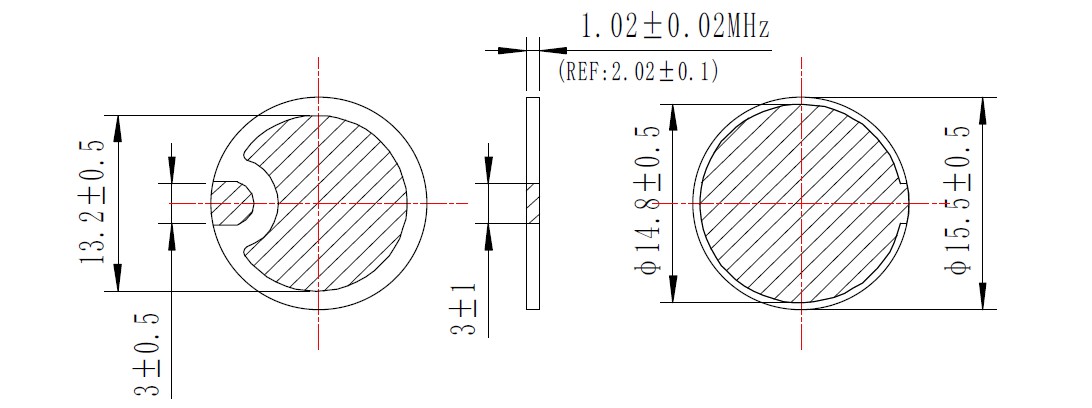

Dimensions

HN00635-000 piezo disc-AUDIOWELL.jpg

Specifications

ItemSpecifications
Resonant impedance≤50Ω
Resonant frequency1.015±0.03MHz
Static capacitance1350±20%pF
