Understanding Ultrasonics Ultrasonic Sensing/Control Basics Ultrasonic signals are like audible sound waves, except the frequencies are much higher. Our ultrasonic transducers have piezoelectric crystals which resonate to a desired frequency and convert electric energy into acoustic energy and vice versa. The illustration shows how sound waves, transmitted in the shape of a cone, are reflected from a target back to the transducer. An output signal is produced to perform some kind of indicating or control function. A minimum distance from the sensor is required to provide a time delay so that the “echoes” can be interpreted. Variables which can effect the operation of ultrasonic sensing include: target surface angle, reflective surface roughness or changes in temperature or humidity. The targets can have any kind of reflective form – even round objects.
When used for sensing functions, the ultrasonic method has unique advantages over conventional sensors:
Discrete distances to moving objects can be detected and measured.
Less affected by target materials and surfaces, and not affected by color. Solid-state units have virtually unlimited, maintenance free life. Can detect small objects over long operating distances.
Resistance to external disturbances such as vibration, infrared radiation, ambient noise, and EMI radiation.
The following diagrams summarize the distinctions between proximity and ranging ultrasonic sensors:
An object passing anywhere within the preset range will be detected and generate an output signal. The detect point is independent of target size, material, or degree of reflectivity.
First Image-Object Detected
Second Image-Object Not Detected

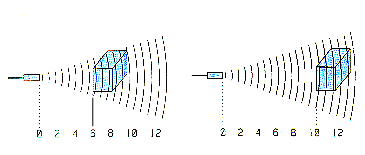

Precise distance(s) of an object moving to and from the sensor are measured via time intervals between transmitted and reflected bursts of ultrasonic sound. The example shows a target detected at six inches from sensor and moving to 10 inches. The distance change is continuously calculated and outputted
.
This term refers to the “tilt response” limitations of a given sensor. Since ultrasonic sound waves reflect off the target object, target angles indicate acceptable amounts of tilt for a given sensor. If an application requires a target angle beyond the capabilities of a single sensor, two sensors can be teamed up to provide an even broader angle of tilt.
This term is defined as the area in which a round wand will be sensed if passed through the target area. This is the maximum spreading of the ultrasonic sound as it leaves the transducer.
