TK0158|AUDIOWELL AK2 Ultrasonic Sensor

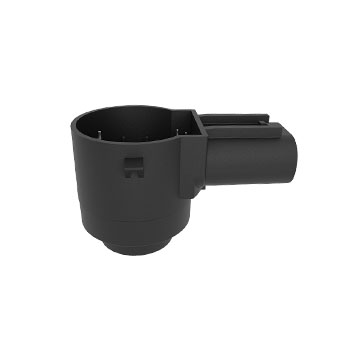

AK2 Ultrasonic SensorModel：TK0158-000

AK2 ultrasonic sensor is a new generation of automotive intelligent sensor based on the principle of ultrasonic ranging, which has the features of low Q value and high broadband. Products are mainly used in reversing radar systems, parking assist systems, and parking distance control systems.

Request a sample

Features

- Strong range measuring ability

- Meet the standard of AK2

- Low Q value

- High bandwidth

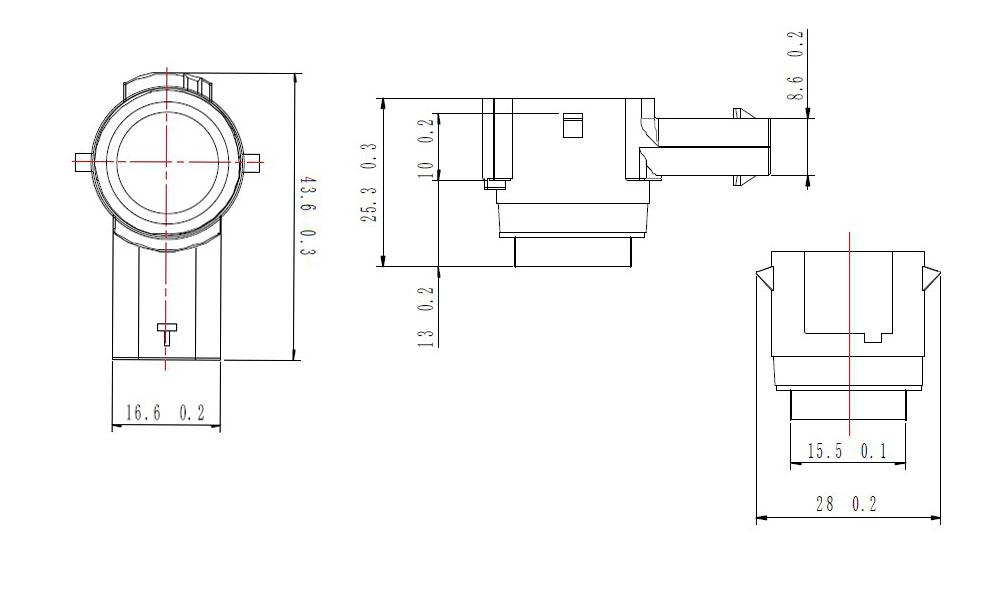

Dimensions

ak2 ultrasonic sensor-AUDIOWELL.jpg

Specifications

Item	Specifications
Resonant frequency	55.5 ± 1.0 kHz
Ring time	≤1.50 mS
Directivity(deg) X-axis	90°±10°
Directivity(deg) Y-axis	45°±10°
Capacitance	1300±20%pF
Max. input voltage	140Vp-p
Operating temperature	-40~+85°C

Applications

- Intelligent parking systems

- Blind spot detection systems

- Obstacle avoidance systems
